2001 BMW 740i e38 Oil Leaks and Faulty Timing Chain Guide Rails
A 2001 BMW 740i e38 arrived at the shop with severe oil leaks and a check engine light pointing to cam timing vanos issues. The repair uncovered badly damaged timing chain guide rails and debris blocking the oil pump pickup.
- After removing the upper and lower timing covers, the plastic ramps on the timing chain guides were found to have failed, with sludge buildup adding to the damage.
- The oil pan was pulled after debris was not fully accounted for, revealing pieces blocking the oil pump pickup - a condition that could have caused oil starvation and engine failure.
- New timing rails were installed, the cams were timed, and the oil leaks were corrected, clearing the vanos faults and saving the engine from likely failure within a few thousand more miles.
Oil leaks and timing chain problems in a 2001 BMW 740i e38 are often caused by failed plastic ramps on the timing chain guides and deteriorated timing cover seals. Debris from broken guide rails can block the oil pump pickup, risking bent valves or failed rod bearings. Resealing covers and replacing damaged timing parts resolves both issues.
-

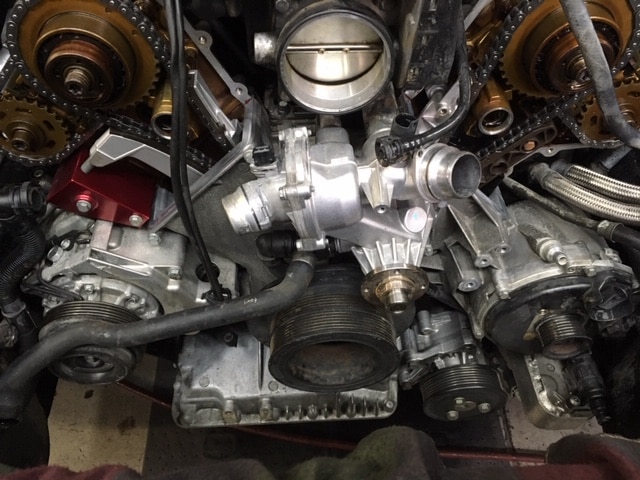

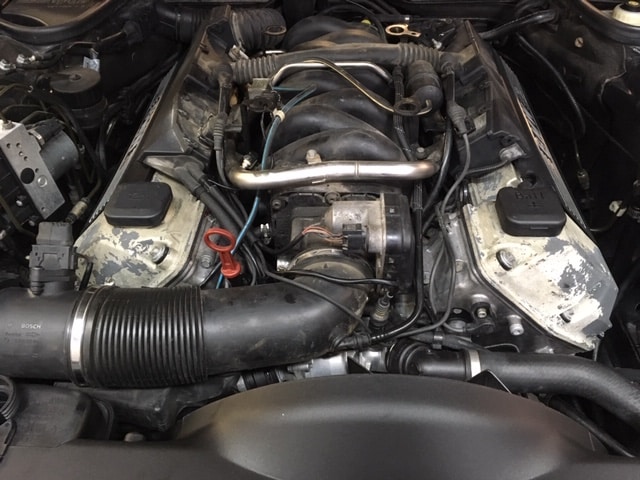

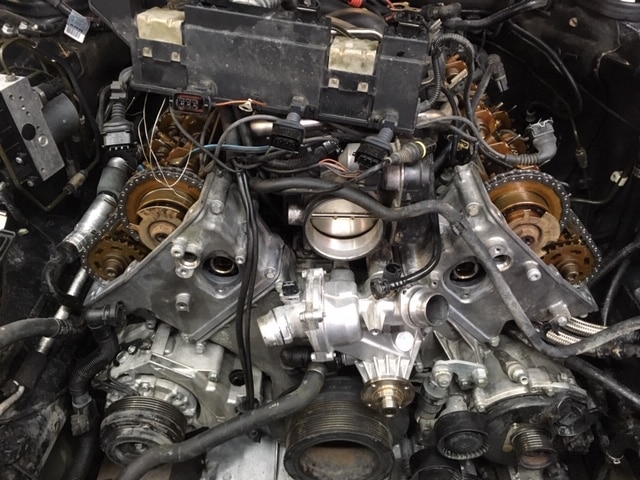

- All cleaned up, cams timed and ready to drive
-

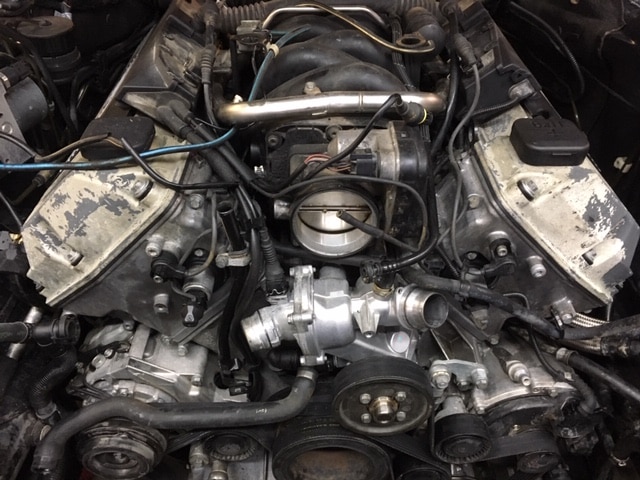

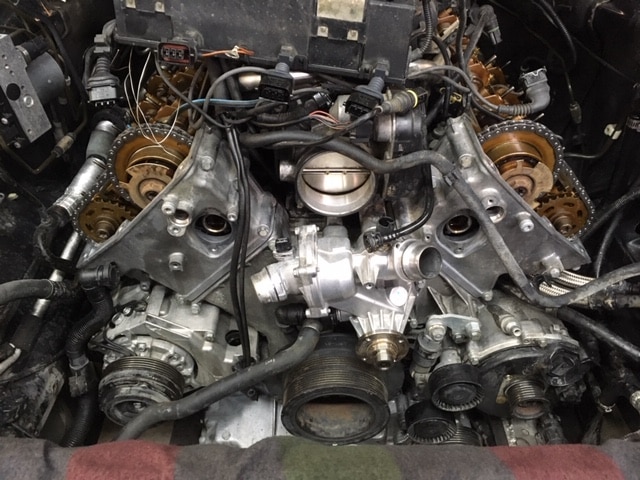

- We always do a good job cleaning up the mess left behind from oil leaks
-

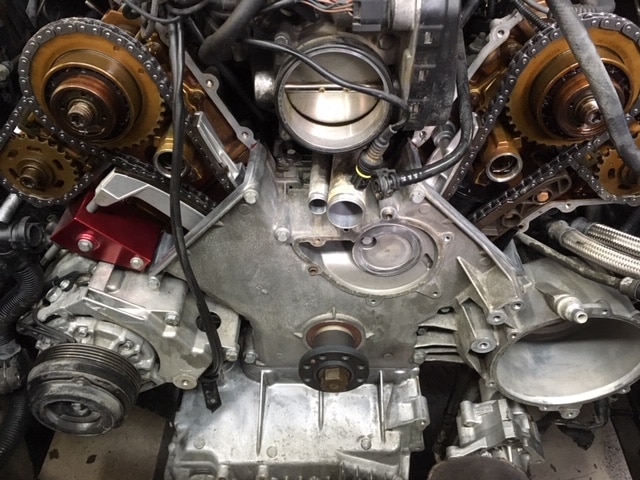

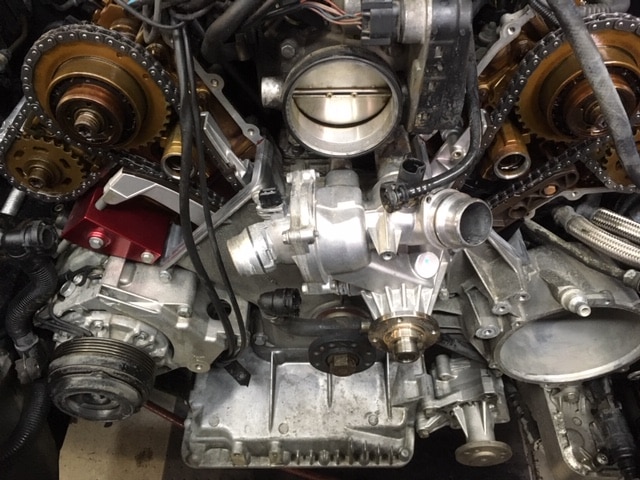

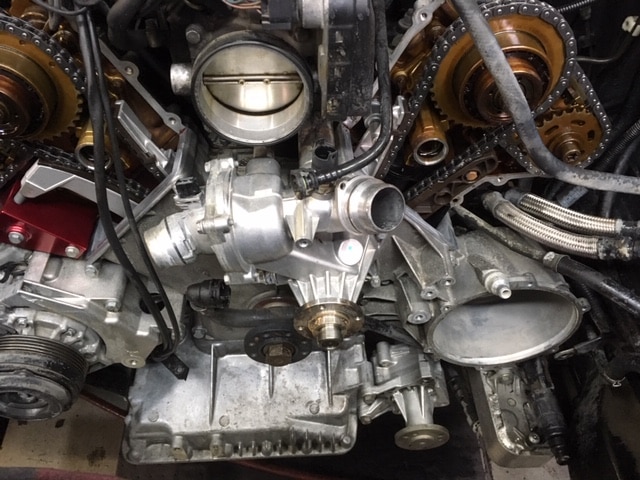

- New timing rails installed and special cam timing tools in place
-

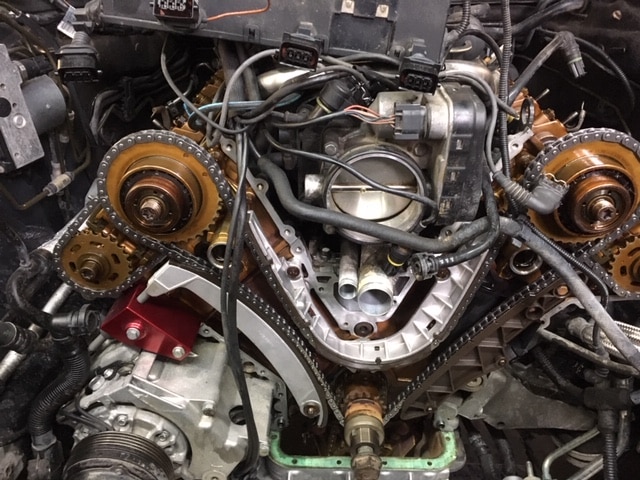

- with lower timing cover removed the full extent of the damage is revealed. The customer was lucky we went in to fix his oil leaks, or the motor would have been ruined in a few thous and more miles.
-
- lastic pieces from damaged timing guide collecting in oil pickup. This could lead to oil starvation, rod bearing failure and engine failure.
-
- additional photo of damaged timing chain rain and extensive sludge buildup from oil leak
-

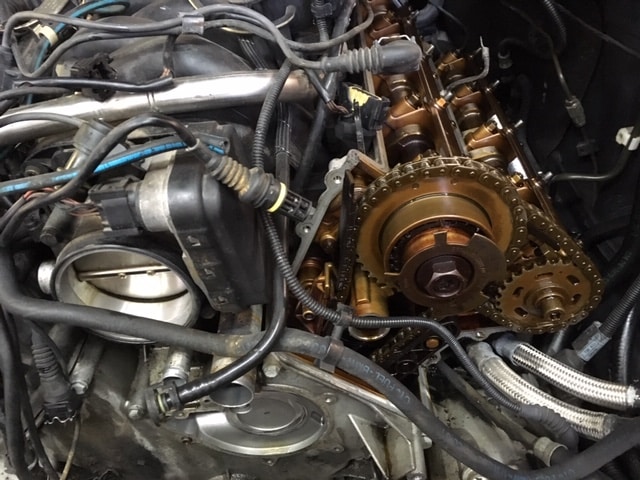

- With the upper timing cover removed we were able to see the damaged timing chain guide rail
This 740i BMW came to us with pretty bad oil leaks and check engine light indicating problems with the cam timing vanos system. We recommended resealing the timing covers and inspecting the timing components. Once we had the upper timing covers off we were able to see that the plastic ramps on the timing chain guides had failed, removing the lower covers revealed the extent of the damage. Since we did not find all of the failed timing parts with the covers removed we removed the oil pan where we found more debris, some of which was blocking the oil pump pickup. It’s a good thing we caught this when we did or the engine would have failed due to bent valves, failed rod bearings or both. After inspecting all of the timing components and replacing the need parts the oil leaks were corrected and the vanos faults were gone.
