2008 Porsche Cayenne Turbo Coolant Leak
A 2008 Porsche Cayenne Turbo arrived with a severe coolant leak, where anything added to the reservoir immediately drained out the bottom. The cause was a hose connection on the coolant distribution manifold that had popped out, as the factory used glue rather than a secure threaded fitting.
- The newer Cayenne generation avoided the plastic coolant tube failures seen in earlier models, but the glued hose connections on the manifold proved to be a weak point. The separated outlet was found on the back of the engine.
- Fixing the issue required removing either the engine or transmission to access the manifold. The repair involved replacing the manifold with an updated factory part featuring a threaded connection instead of glue.
- The updated Porsche part uses a threaded hose barb rather than a pressed and glued fitting. Once the new manifold was installed, all leaks were sealed and the vehicle was ready to drive.
A common cause of a catastrophic coolant leak in a 2008 Porsche Cayenne Turbo is a hose connection on the coolant distribution manifold at the back of the engine popping out. These connections were originally glued in at the factory. The fix involves removing the piece and welding it or replacing it with an updated part that uses a threaded connection.
This 2008 Porsche Cayenne Turbo came in with a catastrophic coolant leak. Anything poured in the reservoir came right back out the bottom of the vehicle. The newer generation of Cayenne did not suffer from the same plastic coolant tube failures of the earlier models, but we were able to find that a hose connection on the coolant distribution manifold on the back of the engine had popped out, they were glued in from the factory. Much like the 997, to fix this the piece has to be removed and welded, or replaced. Fortunately, the updated factory part comes with a threaded connection instead of glue.
-

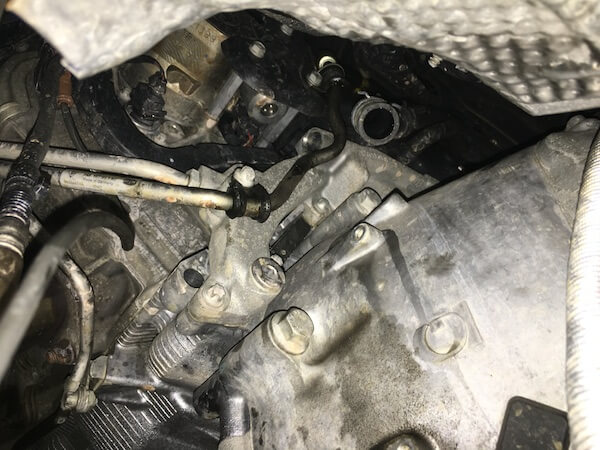

- If you look carefully you can see where the coolant outlet separated from the manifold.
-

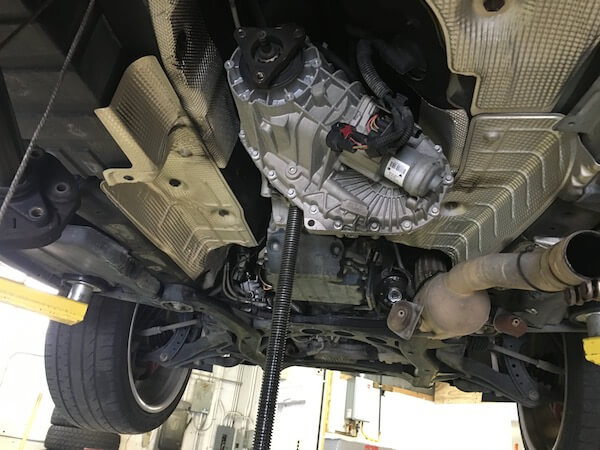

- To access this manifold the engine or transmission must be removed.
-

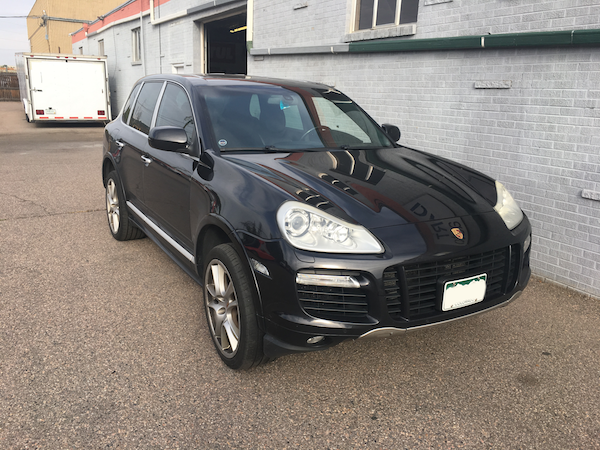

- All leaks sealed up, the vehicle is ready to go.
-

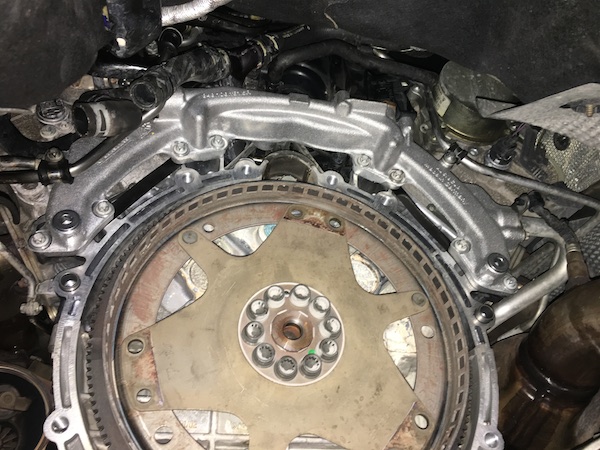

- The new manifold installed and ready.
-

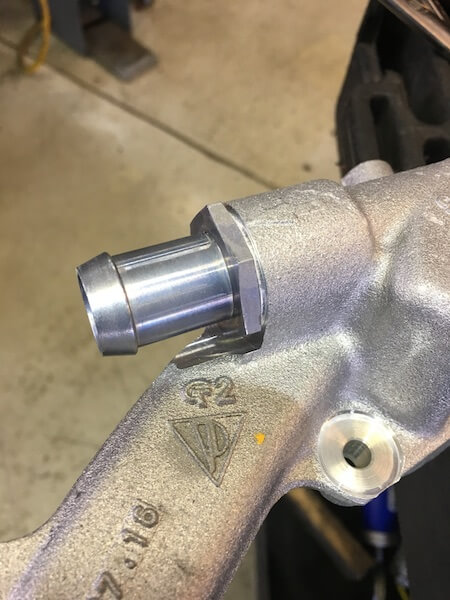

- A closeup of the updated threaded connection
-

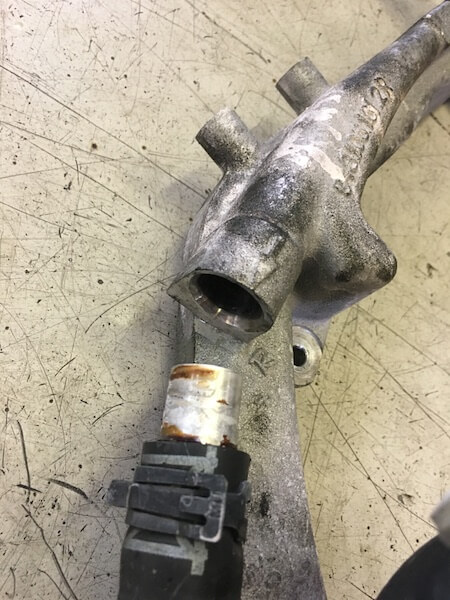

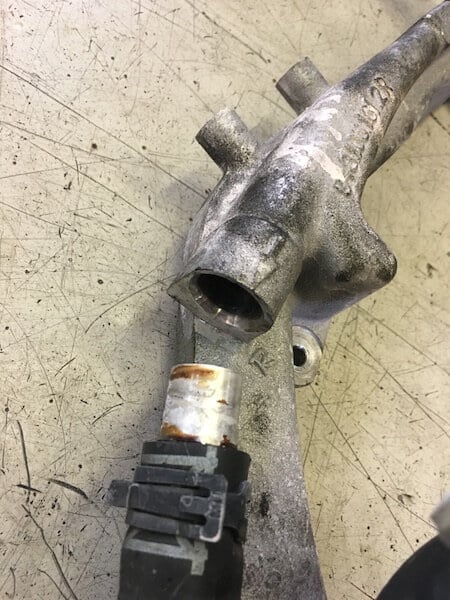

- Here’s a closeup of the connection after the part has been removed. The residue of the factory glue is clearly visible.
-

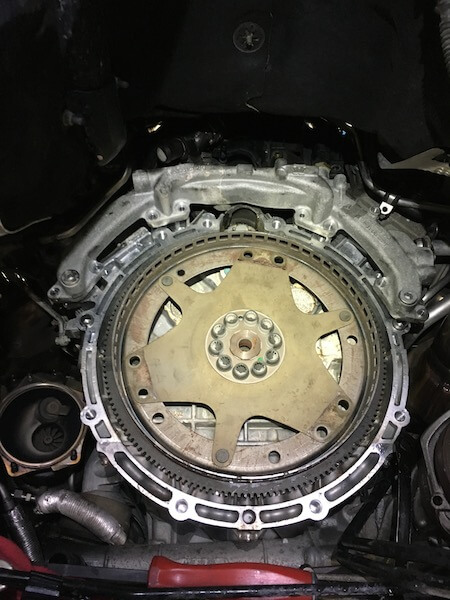

- With the transmission out and some careful work, the manifold can barely be removed from the bottom.
-

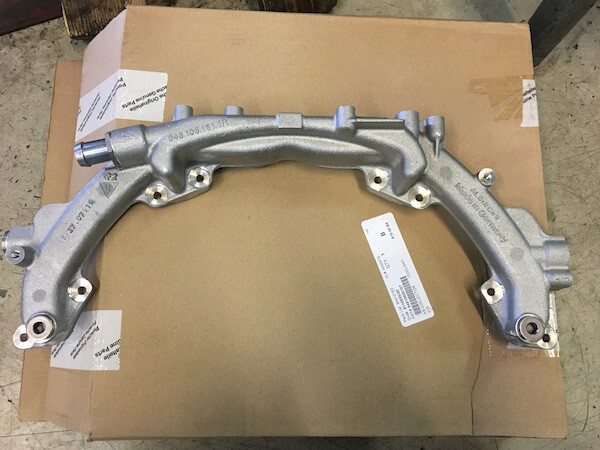

- Here is the updated part from Porsche. The large hose barb on the left is the problem piece, but you can see on this new part the connection is threaded in instead of pressed and glued.
