A 2012 Porsche Cayenne S Hybrid came into the shop with a check engine light caused by faulty catalytic converters, faults P042000 and P043000. Before repairs began, the high voltage battery had to be safely disconnected as a precaution.
Sal was factory trained at BMW on hybrid vehicles and is applying that knowledge using factory service information to safely work on this Porsche hybrid. The shop is also updating its diagnostic equipment to handle newer hybrid and electric technologies.
As a safety step before replacing the catalytic converters, the high voltage battery was disconnected by removing a switch located under the trunk cover near the orange high voltage cables.
The high voltage cables run above one of the catalytic converters, making proper disconnection of the battery a key safety step before any repair work begins.
What should you know about servicing a 2012 Porsche Cayenne hybrid?
Servicing a 2012 Porsche Cayenne hybrid requires up-to-date diagnostic equipment and factory service information to safely handle its advanced technology. Technicians benefit from specialized hybrid training, similar to factory-level BMW hybrid programs, to properly maintain the vehicle's hybrid electric systems and stay current with evolving Porsche hybrid technology.
As Porsche continues to come out with new hybrid and soon all-electric cars we are constantly training to keep on top of the latest technology. We are also updating our diagnostic equipment and service information to handle these newer technologies. Sal was factory trained at BMW to work with hybrid cars and is expanding that knowledge here as he uses our factory information to safely maintain this Porsche hybrid electric Cayenne.

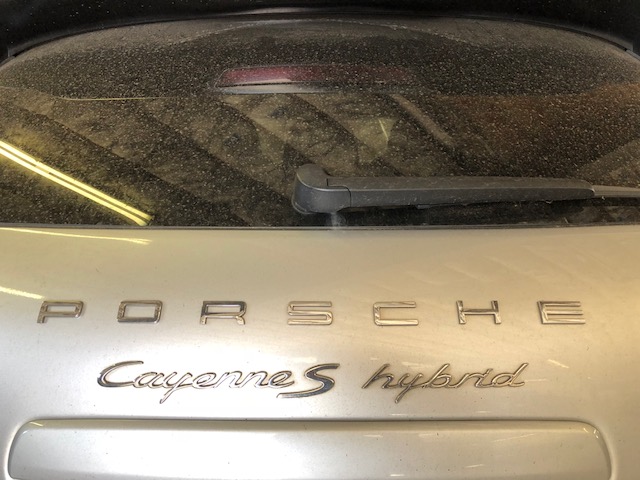

2012 Porsche Cayenne S Hybrid came to the shop with the check engine light on which was due to faulty catalytic converters. With faults P042000 and P043000.
Prior to starting the work, as a safety measure we had to disconnect the high voltage battery.

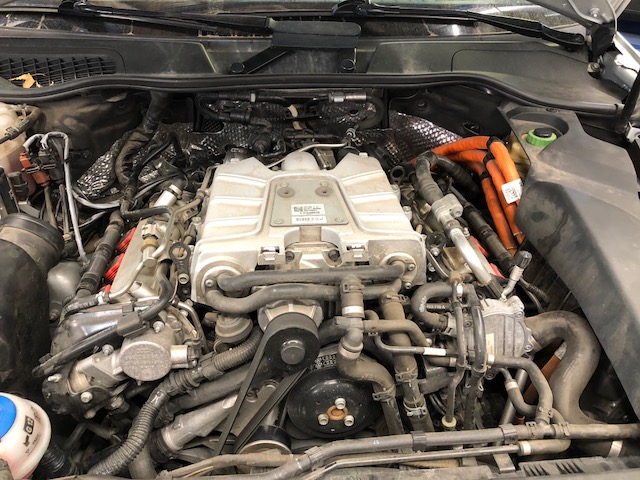

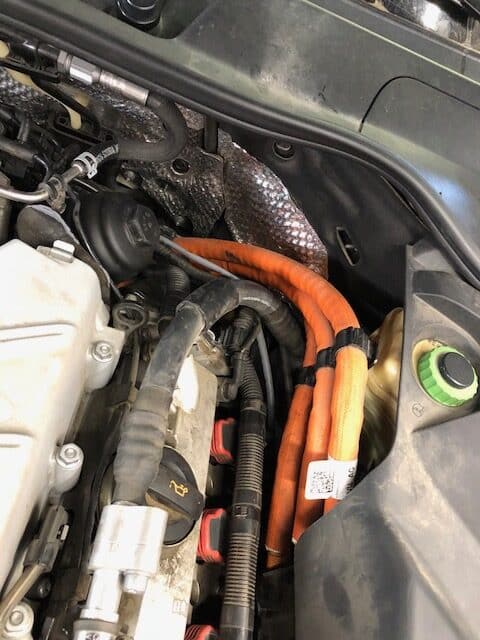

Additional pictures showing the high voltage cables above one of the catalytic converter
Additional pictures showing the high voltage cables above one of the catalytic converter
Disconnection of the HVB is completed after the switch is removed.

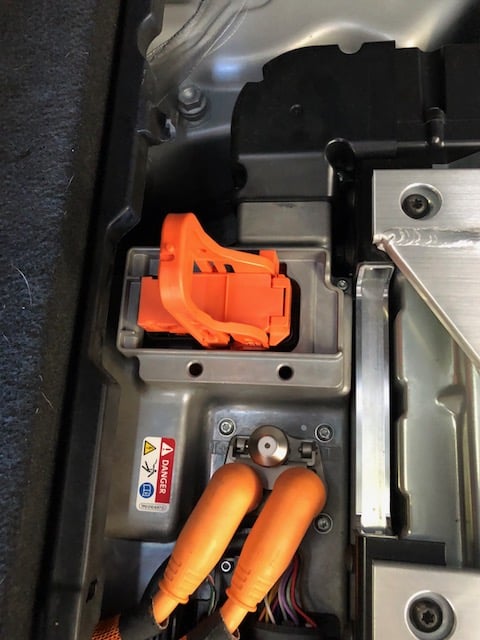

Picture of the upper position of the switch
Pull tab towards the center of the vehicle for unlocking switch

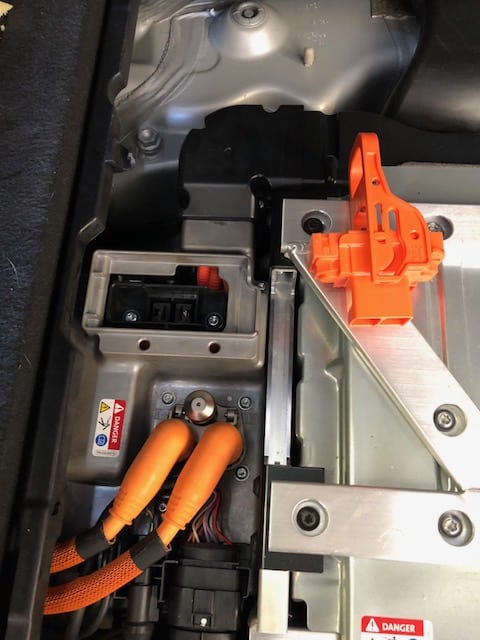

After removing the cover a picture of the disconnected switch for HVB
High voltage battery located underneath of the trunk cover. The orange wires are high voltage, underneath of the square connector is the switch to disconnect the HVB.
FAQs
The 2012 Porsche Cayenne was offered in several variants, including a base V6, a Cayenne S with a V8, a Cayenne Turbo with a twin-turbocharged V8, and a Cayenne S Hybrid that paired a supercharged V6 with an electric motor. Each trim level offered a different balance of performance and fuel efficiency. The hybrid model was particularly popular for buyers wanting Porsche performance with better fuel economy.
The 2012 Cayenne S Hybrid combines a supercharged 3.0-liter V6 engine with an electric motor to deliver a combined output of around 380 horsepower. The system can run on electric power alone at lower speeds, which helps improve fuel efficiency compared to the standard V8 models. A high-voltage battery pack located under the trunk floor stores energy for the electric motor.
A check engine light on the 2012 Cayenne S Hybrid can point to a range of issues, but common causes include faulty catalytic converters, which often trigger fault codes P042000 and P043000. These codes indicate that the catalytic converter efficiency has dropped below the acceptable threshold. It is best to have the vehicle diagnosed with proper Porsche-compatible equipment as soon as the light appears.
Working on the hybrid system of the 2012 Cayenne S Hybrid carries serious safety risks due to the high-voltage battery and orange high-voltage cables running through the vehicle. Before any service work near these components, the high-voltage battery must be properly disconnected using the designated switch located under the trunk cover. This type of work is best left to a trained technician who is familiar with hybrid vehicle safety procedures.
To disconnect the high-voltage battery on the 2012 Cayenne S Hybrid, you need to access the switch located underneath the trunk cover where the orange high-voltage wires are visible. The switch cover must be removed, and then the tab is pulled toward the center of the vehicle to release and disconnect the switch. This step is a required safety measure before performing any service work near the hybrid components or catalytic converters.
The 2012 Porsche Cayenne is generally considered a reliable luxury SUV when properly maintained, though it does have some known issues such as coolant leaks, air suspension problems, and catalytic converter failures on the hybrid model. Regular maintenance using factory service information and quality parts helps extend the life of these vehicles. Finding a shop with experience specifically on Porsche models, including hybrid variants, makes a big difference in long-term reliability.
Catalytic converter replacement on the 2012 Cayenne S Hybrid can be a significant expense, often ranging from several hundred to over a thousand dollars per converter depending on parts and labor costs in your area. The hybrid version adds complexity because high-voltage cables run near the catalytic converters, requiring the high-voltage battery to be safely disconnected before work begins. Getting an estimate from a shop experienced with Porsche hybrids will give you the most accurate pricing for your situation.
