BMW 3 series E46 Cylinder Head Gasket and Pulled Head Studs
Cylinder head gasket failure is a common issue in BMW E46 3 series vehicles, typically caused by cooling system problems that lead to a warped head and pulled threads in the aluminum block. Rather than replacing the engine, shops like DART auto repair the damage using specialized tools and thread inserts.
- Faulty thermostats, bad radiators, and leaking cooling systems can cause the straight six cylinder head to warp, pulling threads from the aluminum block. The official BMW factory fix is a full engine replacement.
- DART auto removes the intake, camshafts, and cylinder head, then machines the head flat and uses a jig to drill and re-thread the block for time-cert thread inserts. The jig also protects cylinder bores from machining debris during the process.
- After new threads are installed and everything is reassembled, the cooling system is flushed and inspected before the car is returned to service.
Cylinder head gasket failure in the BMW E46 3 Series is commonly caused by cooling system problems. Faulty thermostats, bad radiators, failing cooling fans, or leaking coolant can generate excess heat, warping the straight-six cylinder head. This warping causes the head bolts to pull threads from the aluminum engine block, leading to serious engine damage.
-

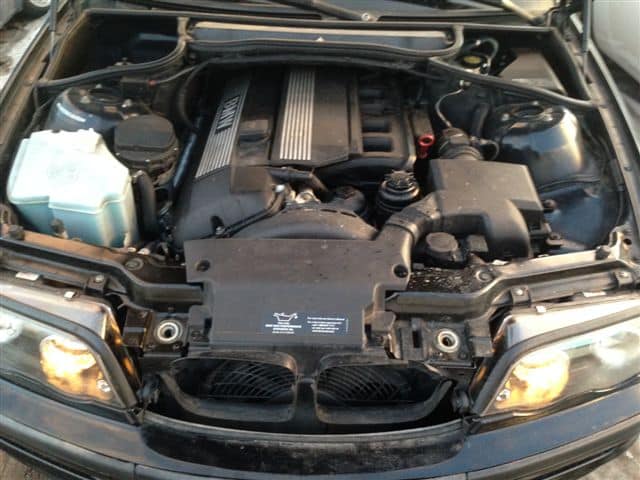

- Ready to go
-

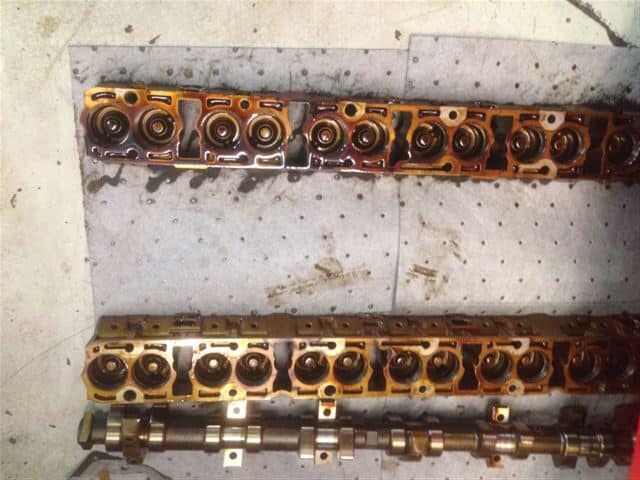

- Cams and cam towers removed
-
- Camshafts Installed
-
- Camshafts installed
-
- Vanos tool installed to set cam timing
-
- Using jig to install thread repair inserts
-

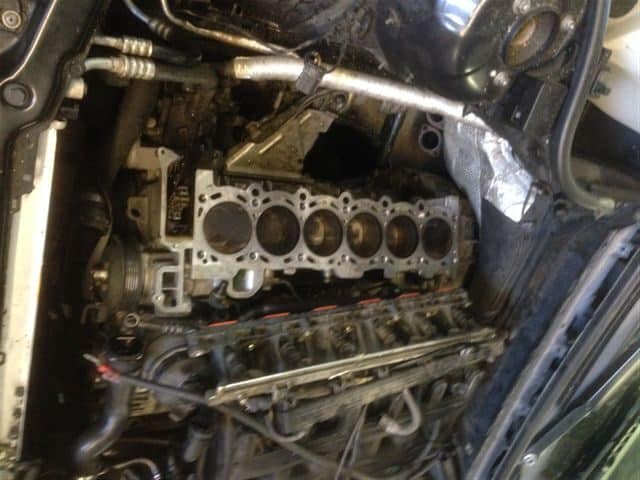

- Cylinder head off, block and pistons exposed
A failed cylinder head gasket is fairly common for E46 3 series BMW’s. The root cause is usually a problem with the cooling system. Faulty thermostats, bad radiators, bad cooling fans and leaking cooling systems must be address immediately with these cars or they can cause severe engine damage. What happens is the long straight six cylinder head warps from the excess heat. This causes the cylinder head bolts to pull the threads from the aluminum engine block. The official BMW factory fix has been to replace the engine. Many dealers and quality independent shops such as DART auto have been repairing rather than replacing these damaged engines.
First the intake, camshafts and cylinder head are removed. The cylinder head is machined back to a flat surface. There is a limited amount of material that can be removed, so in severe cases a replacement cylinder head must be found. The block is also checked to make sure it is flat. Renewing the threads is the tricky part. One way to do it would be to totally disassemble the engine and have a machine shop put it on a mill to install thread inserts. We found a great little jig that lets of drill the block, re-thread it for time-cert thread inserts and install the inserts nice and straight. The jig also covers all of the cylinder bores during the operation so none of the machining materials end up in the engine.
After the new threads are in place, everything is assembled, the cooling system is flushed and carefully inspected and the car is ready for many more miles of being the ultimate driving machine.
