BMW 335 Belt Failure
A customer declined recommended accessory belt and tensioner repairs, and the belt later failed, requiring a tow. On BMW 3 and 5 series vehicles from 2004-2016 with N52 or N54 engines, failed belts can get pulled through the crank seal and into the oil pan.
- We had warned this customer about irregular belt wear and tensioner noise, but the repairs were declined. The belt failure happened months later and required a tow truck.
- When the belt enters the oil pan, it can clog the oil pump pickup and cause oil starvation to the rod bearings, leading to engine failure. Simply replacing the belt without inspecting the oil pan leaves a high risk of this outcome.
- This issue affects BMW 323, 325, 328, 523, 525, 535, 128, 630, X3, X5, and Z4 models with N52 or N54 engines. A special BMW tool is needed to properly seat the new crankshaft oil seal during repair.
When a belt fails on BMW 3 series and 5 series cars from 2004-2016 with N52 or N54 engines, the belt can get sucked through the crank seal and into the oil pan. If the oil pan is not inspected, belt pieces can block the oil pump pickup, causing oil starvation that damages rod bearings, the crankshaft, and rods, leading to engine failure.
We had recommended that this customer replace their accessory belt and belt tensioner because there was a noise coming from the tensioner and there was irregular belt wear. Unfortunately, the customer declined these repairs and returned several months later on a tow truck. The belt did fail. On BMW 3 series and 5 series cars from 2004-2016 with N52 or N54 engines, there is a unique problem where the belts get sucked through the crank seal and into the oil pan. If the belt is just changed and the oil pan is not inspected there is a strong probability that part of the belt has been sucked into the oil pan, will make its way to the oil pump pickup, causing oil starvation to the rods, ultimately damaging the rod bearings, crankshaft and rods and leading to engine failure. This is a known problem with BMW 323, 523, Z4 X3, 525, 325, 328 128, 630 and X5 vehicles with the N52 or N54 engine.
-

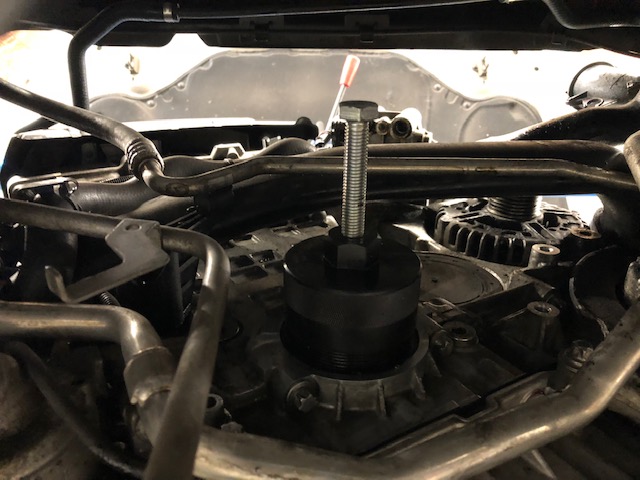

- Using special BMW tool to properly seat the new crankshaft oil seal
-

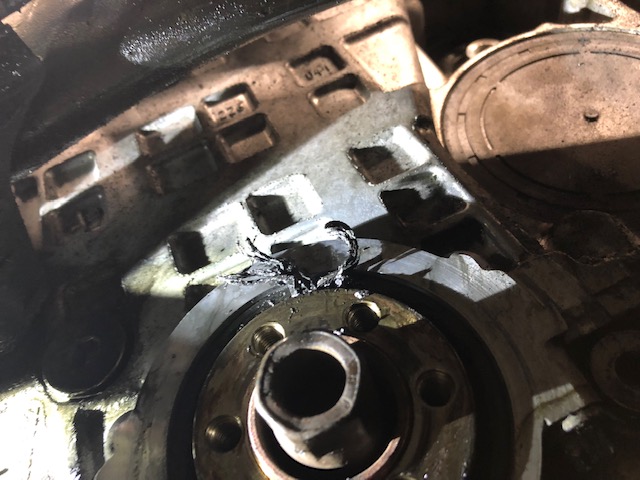

- The belt on this BMW 335 failed and was sucked into the crank sea
-

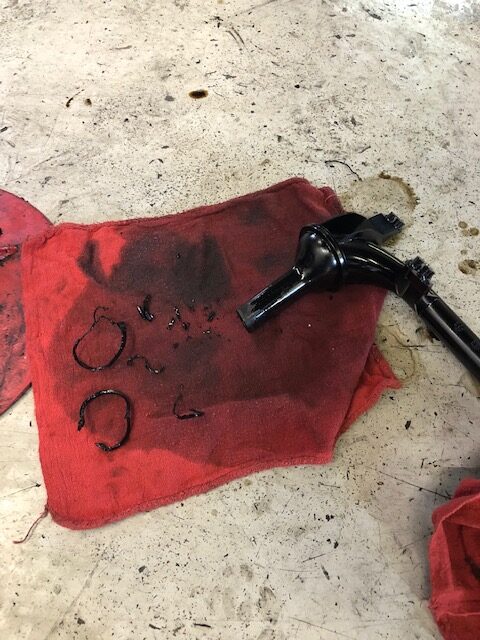

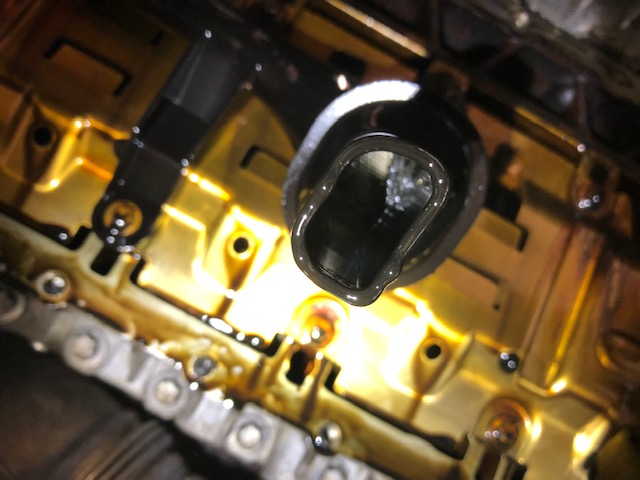

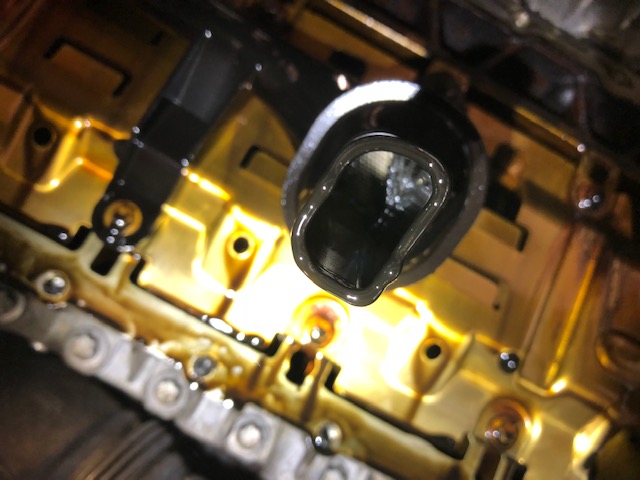

- Oil pickup removed for cleaning because of accessory belt debris on this N54 engine
-

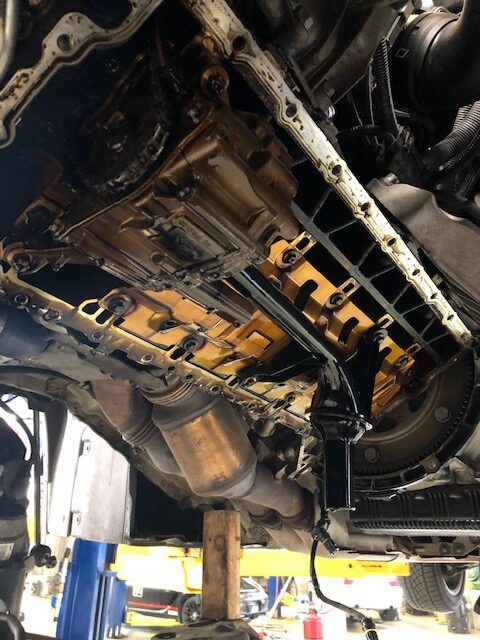

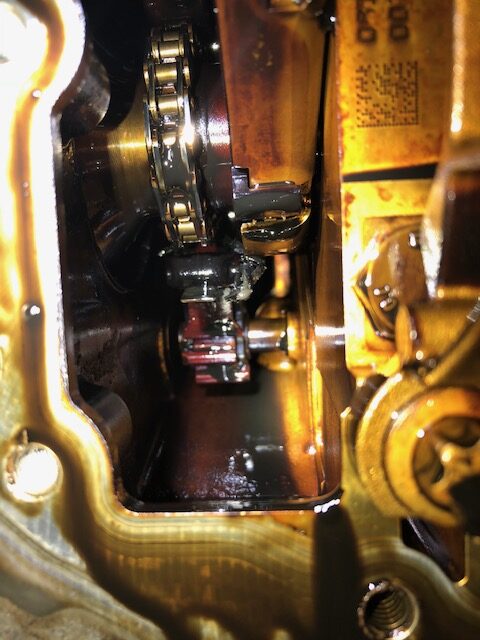

- debris on the timing components
-

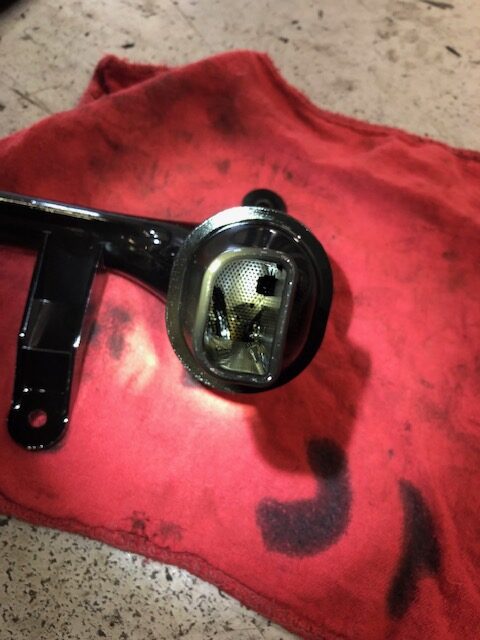

- Oil pickup starting to clog with multi rib belt debris
-

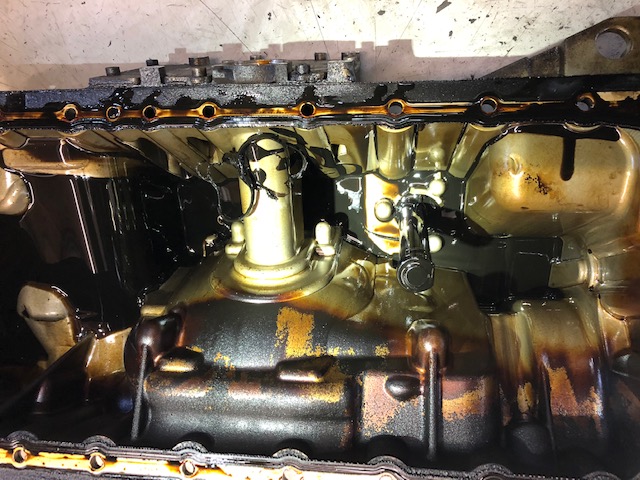

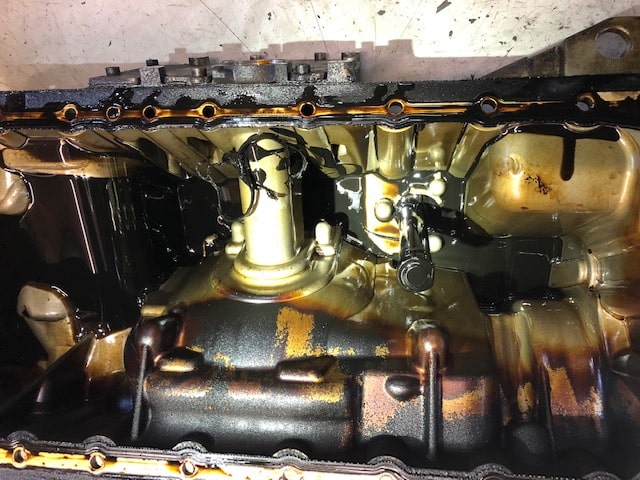

- Another shot of the oil pan on this N54 BMW 535 showing multi rib belt debris
-

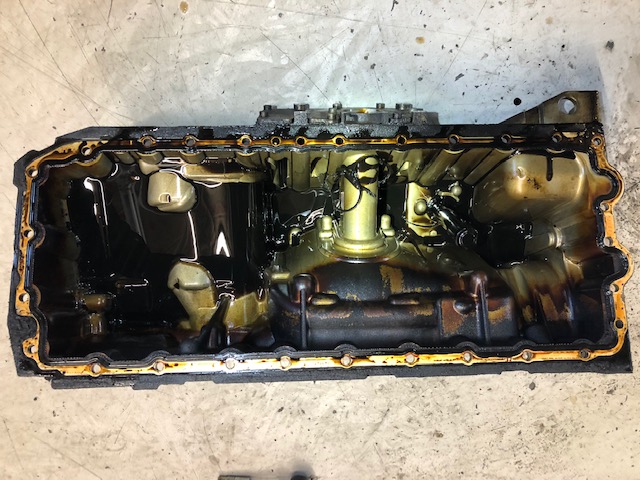

- This is the scary part, the belt gets sucked through the crank seal and into the oil pan. After that it can clog the oil pump pickup and lead to rod bearing failure
-

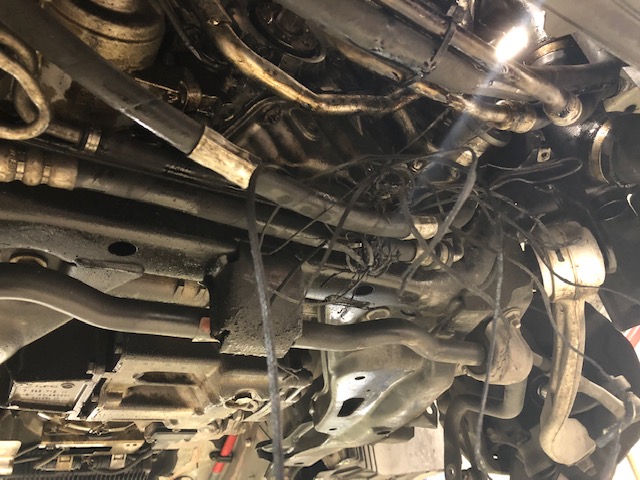

- The aftermath of a BMW accessory belt failure
-

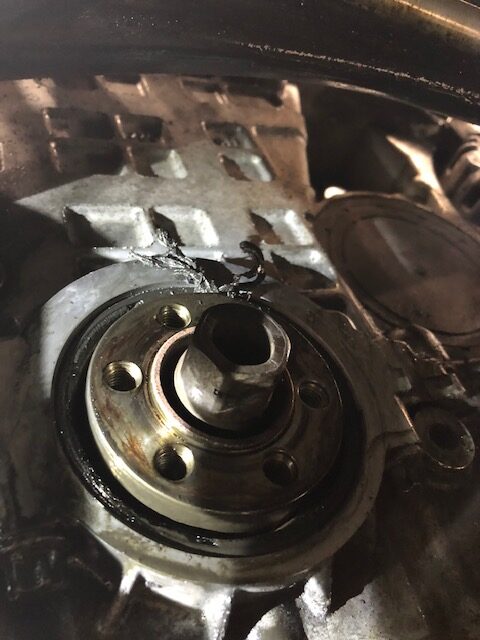

- The belt on this BMW 335 failed and was sucked into the crank seal
