BMW M3 Convertible Top
A 2004 BMW M3 convertible came in for repair after its cover plate hydraulic cylinders began leaking, causing interior damage. The repair required replacing the cylinder sets and bleeding the hydraulic system.
- The M3 convertible uses 6 hydraulic cylinders to operate the top and cover plate. Leaking fluid can damage the pump and cause the top to stop working.
- Cylinders are sold in sets with hydraulic lines attached. The entire top must be removed and the upholstery peeled back to access and replace the lines.
- Interior panels were removed to complete the install. The job finished with a full bleed of the hydraulic system and final testing of the new unit.
The 2004 BMW M3 convertible uses 6 separate hydraulic cylinders to operate the top and its cover plate. When the cylinders leak, fluid loss can damage the pump and cause the top to stop functioning. The cylinders are sold in sets with hydraulic lines attached and require a full bleed after installation.
BMW M3 Convertible Hydraulic Cylinders : BMW Repair Denver
This 2004 BMW M3 convertible has 6 separate hydraulic cylinders that actuate the top and the cover plate for the top. The cover plate cylinders stared leaking on this car and damaging the interior. As the fluid leaks out the pump can be damaged and the top will stop functioning. The cylinders are sold in sets with the hydraulic lines attached. The entire top must be removed, the covering peeled back to accomodate the hydraulic lines and the system must be bled.
-
- The hydraulic cylinder and line kit from BMW
-
- The top removed with the upholstery peeled back to remove and install the hydraulic lines
-
- The interior of the car with panels removed to accommodate the install
-

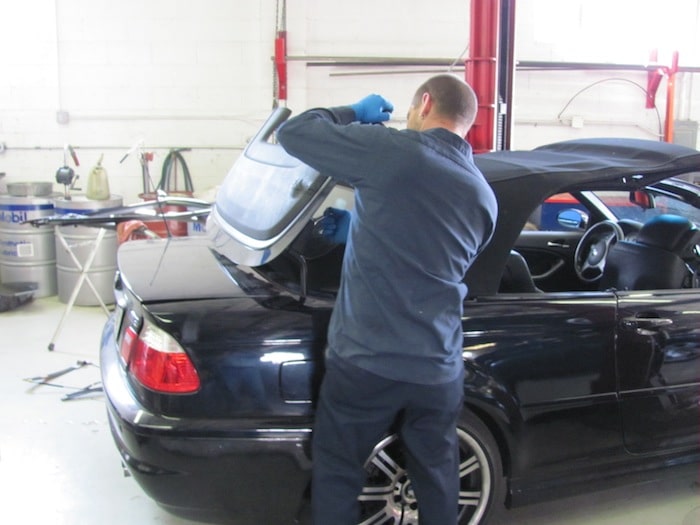

- Final assembly and testing of new hydraulic unit
