A Porsche Boxster S arrived with a brake pad lining warning light on after heavy track use had severely worn the pads and melted the sensors out of the backing plates. The uneven wear led to a full rebuild of the Brembo brake calipers.

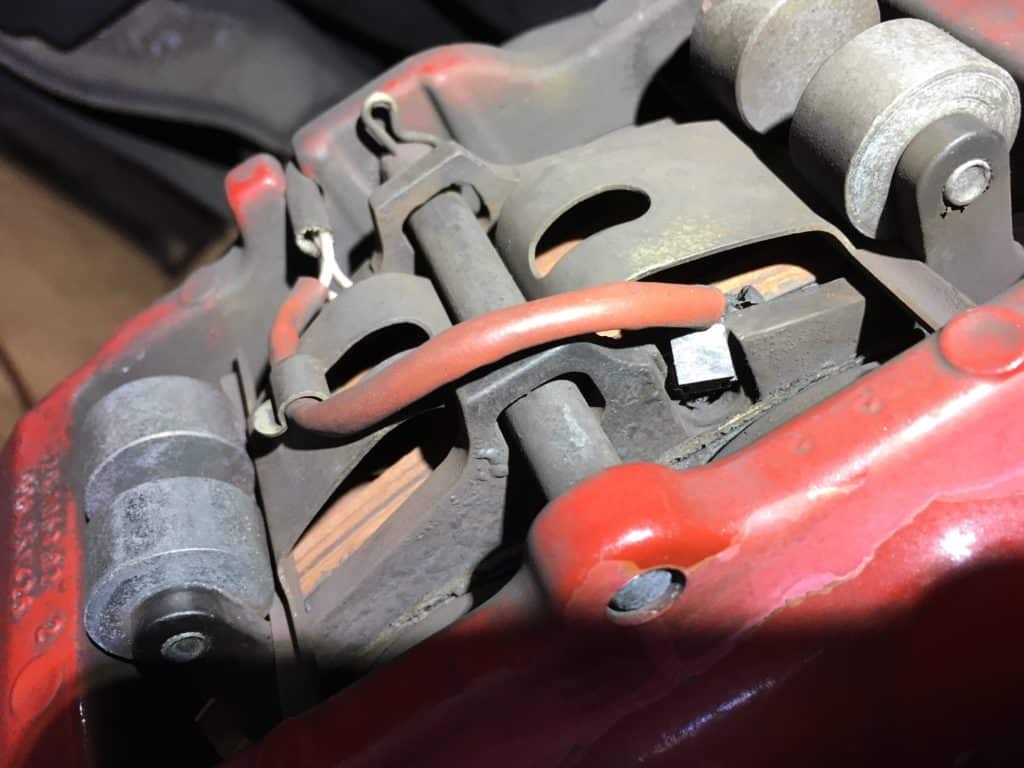

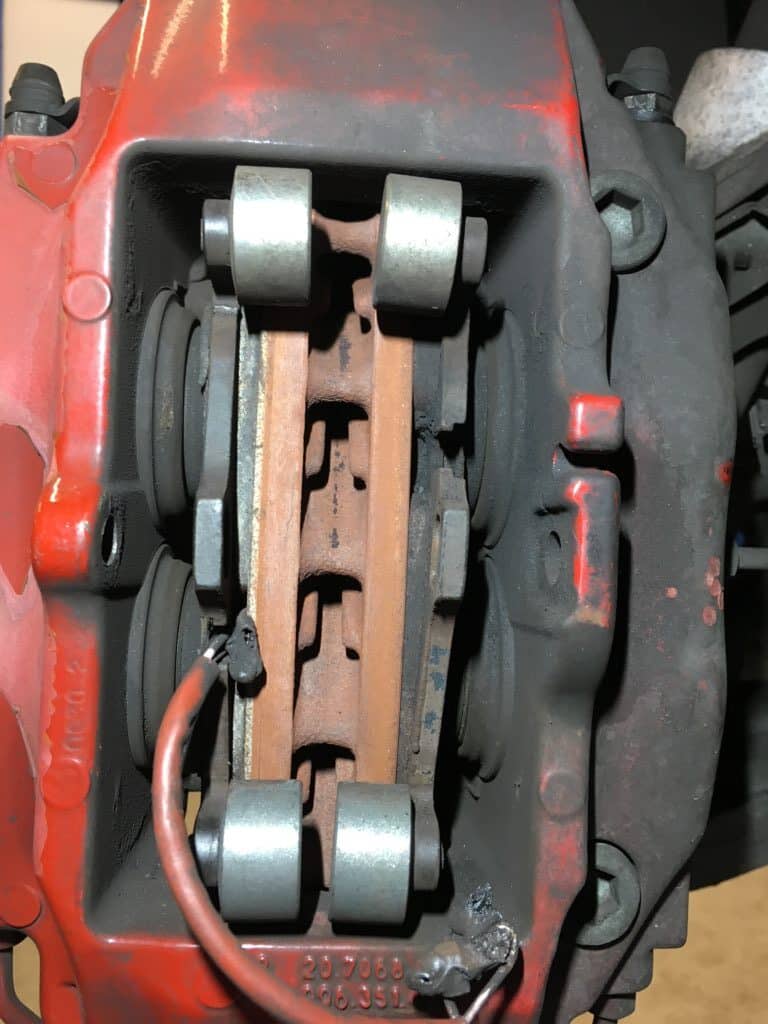

The brake pads were worn unevenly following a race track session, and the sensors had melted out of the brake pad backing plates. This triggered the brake pad lining light on the instrument panel.
To rebuild the Brembo calipers, they were removed and compressed air was used to carefully extract the pistons from the caliper body. The caliper body was then thoroughly cleaned.
The pistons were lubricated with fresh DOT 4 brake fluid as part of the rebuild process.
How does a Porsche Boxster S brake caliper rebuild work?
A Porsche Boxster S brake caliper rebuild starts with removing the calipers from the vehicle. Compressed air is used to carefully extract the pistons from the caliper body. The caliper body is then thoroughly cleaned, and the pistons are lubricated with fresh DOT 4 brake fluid before reassembly.
This Porsche Boxster S came in with a brake pad lining light illuminated on the instrument panel. The pads had been severely worn from a session at the race track and the sensors had melted out of the brake pad backing plates. The brake pads were worn unevenly so it was decided the Brembo brake calipers should be rebuilt. First, the calipers are removed and compressed air is used to carefully remove the pistons from the caliper body. The caliper body is then thoroughly cleaned and the pistons are lubricated with fresh DOT 4 brake fluid
FAQs
The brake pad lining light on your Porsche Boxster S means the wear sensors in your brake pads have detected that the pads are getting too thin and need to be replaced. In some cases, like after track use, the sensors can melt or become damaged, which can also trigger the warning light. Either way, you should have the brakes inspected right away.
The cost of a Porsche Boxster S brake repair can vary depending on how much work is needed - a basic pad and rotor replacement will cost less than a full caliper rebuild. If the Brembo calipers need to be rebuilt due to uneven wear or damage, labor and parts costs will be higher. Getting a detailed inspection first helps you understand exactly what needs to be done before committing to a repair.
Driving with the brake warning light on is not recommended, especially for any significant distance. The light indicates your brake pads may be worn down to a level where stopping performance is compromised. You should have the vehicle inspected by a qualified technician as soon as possible to avoid damage to the rotors or calipers.
A Brembo caliper rebuild involves removing the calipers from the vehicle, extracting the pistons using compressed air, thoroughly cleaning the caliper body, and reassembling everything with fresh lubrication and seals. Your Boxster S may need a caliper rebuild if the brake pads have worn unevenly, if the pistons are sticking, or if there are signs of fluid leaks. It restores the calipers to proper working condition without the cost of full replacement.
Uneven brake pad wear on a Porsche Boxster S is often caused by a sticking or seized caliper piston, which prevents the pad from releasing properly after braking. Track driving can accelerate this issue due to the extreme heat generated during repeated hard braking. If left unaddressed, uneven wear can damage the rotors and require more extensive repairs.
The Porsche Boxster S uses DOT 4 brake fluid, which is the standard specification for most Porsche vehicles. DOT 4 fluid has a higher boiling point than DOT 3, making it better suited for performance driving and track use. Brake fluid should be replaced periodically since it absorbs moisture over time, which lowers its boiling point and reduces braking performance.
Track driving puts far more stress on your Boxster S brakes than regular street driving, generating intense heat that can rapidly wear down brake pads and melt the wear sensors right out of the pad backing plates. This kind of heat can also cause uneven pad wear and stress the caliper pistons and seals. If you plan to take your Boxster S to the track regularly, using track-specific brake pads and inspecting the brakes after each session is a smart practice.
